Technical Specifications
| Feature | Details |
| Material | Solid hardwood (Beech or Swedish Pine) — 650-750 kg/m³ density |
| Treatment Options | • Fire-retardant (ASTM E84 Class B)<br>• Epoxy sealer (moisture/oil resistant)<br>• Wood preservative (anti-fungal) |
| Size Range | DN 15 to DN 900 (½″ to 36″) |

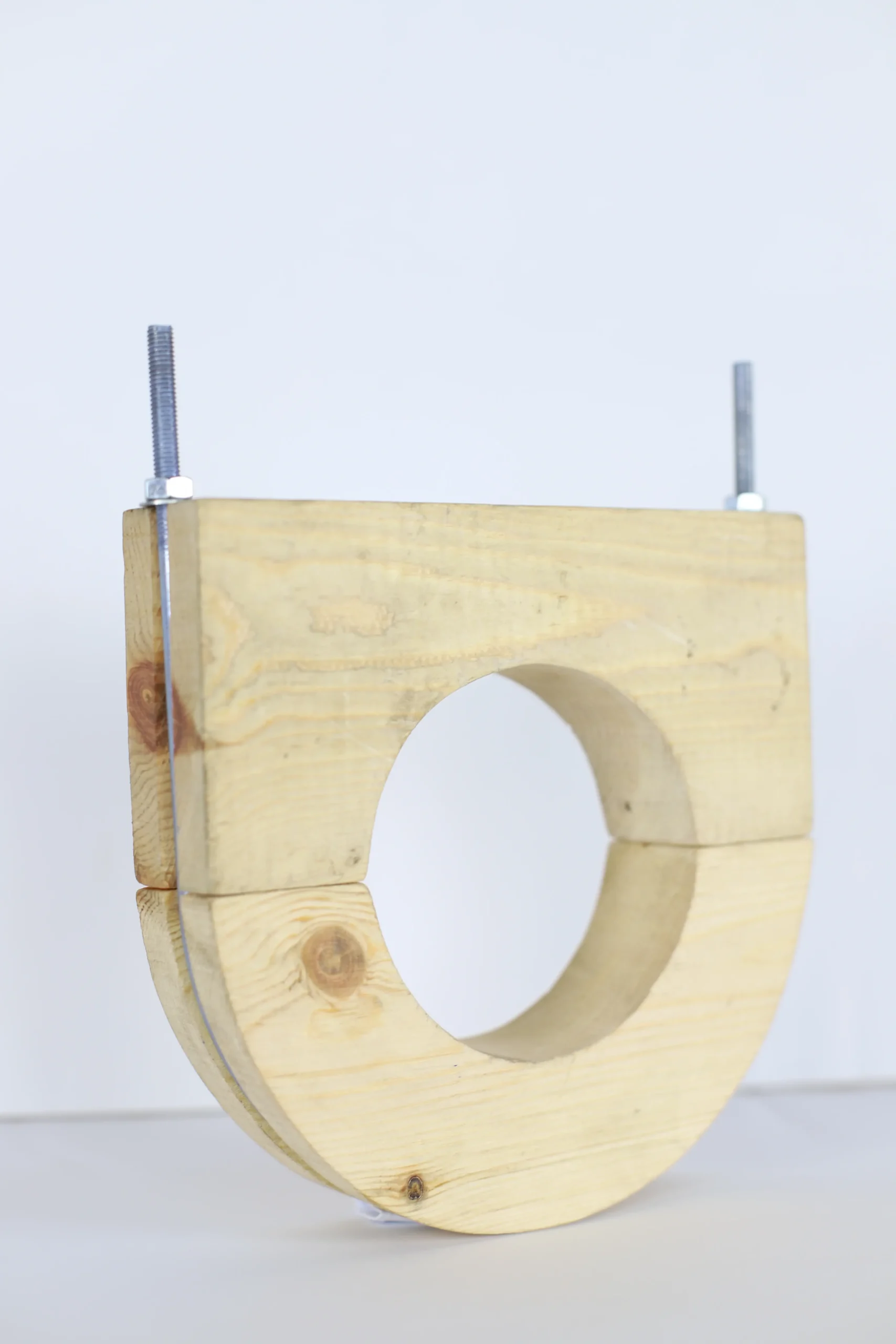

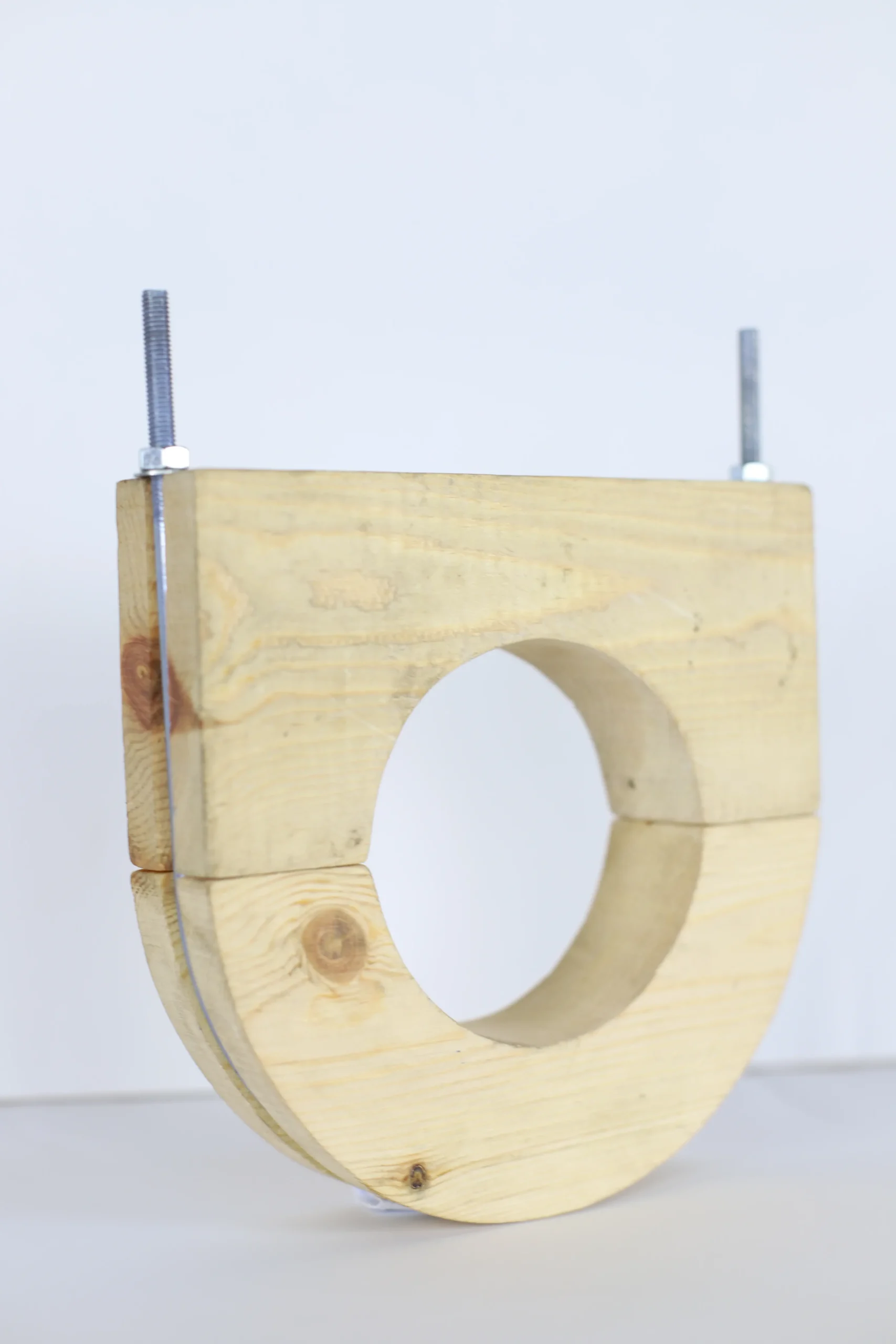

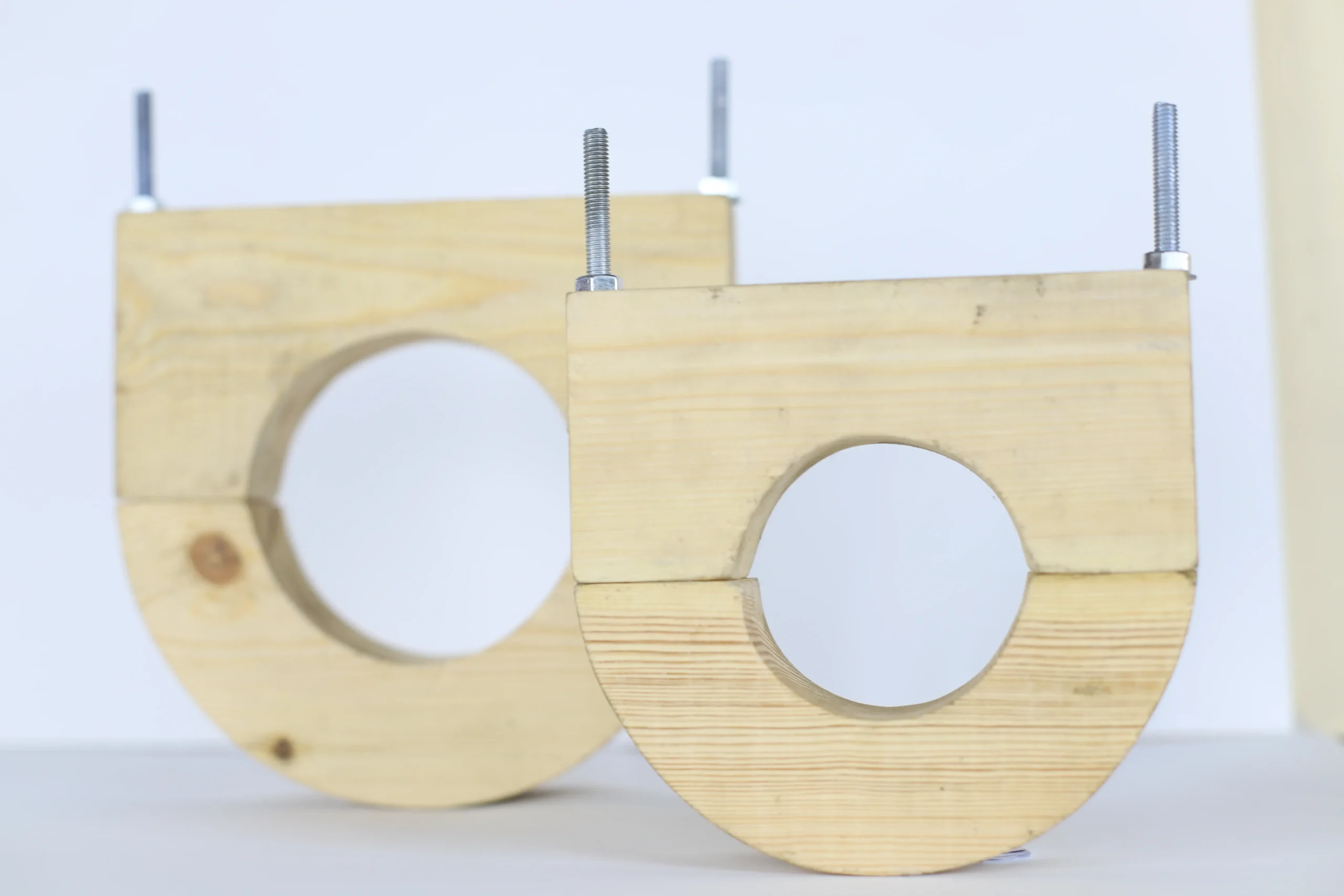

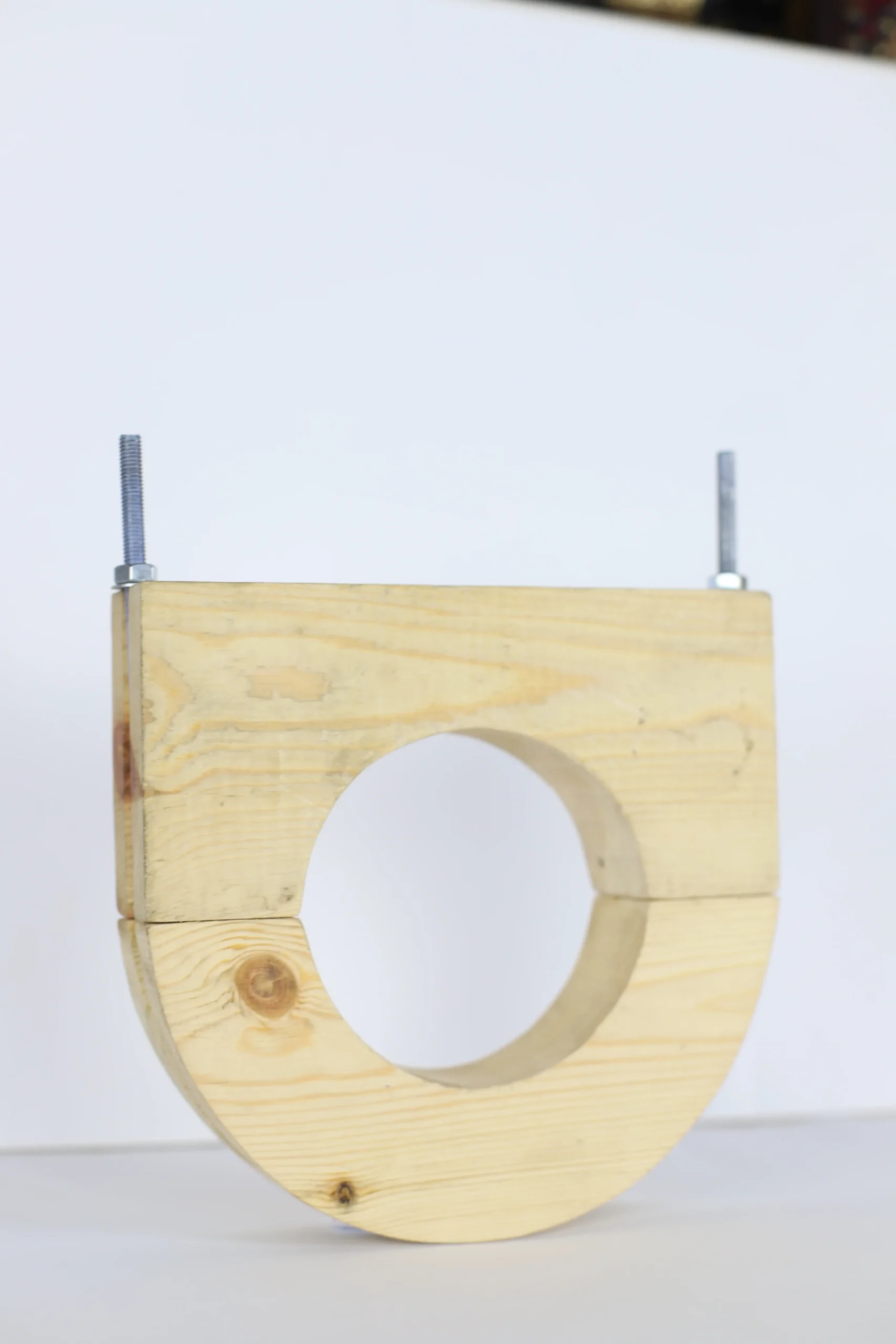

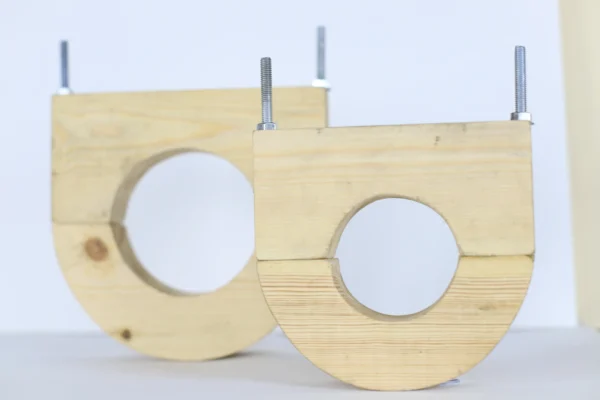

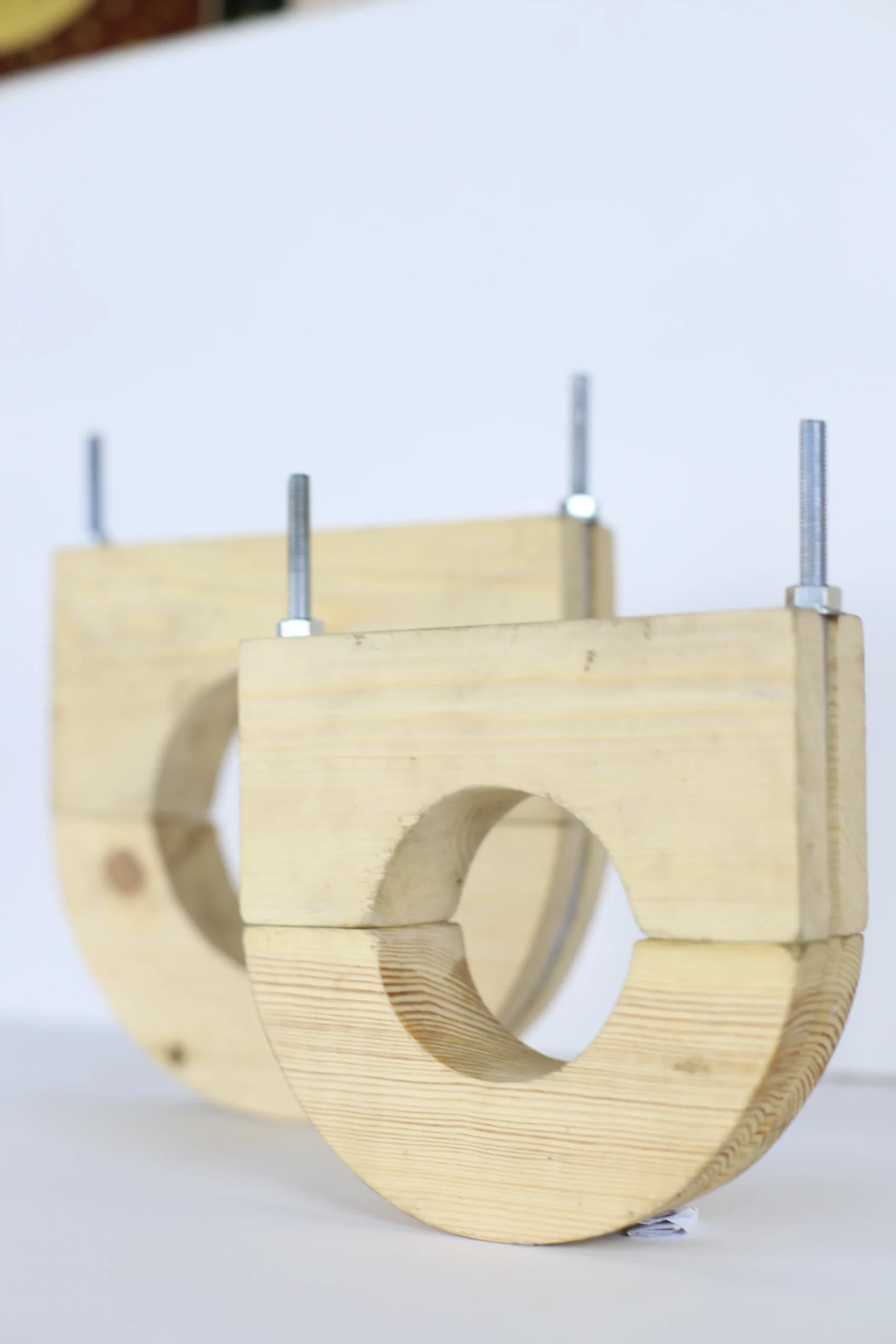

| Cradle Configuration | Semi-circular 180° pipe contact with U-bolt through-holes |
| Machining Tolerance | ±0.5mm on pipe radius |
| Load Capacity | 200-2,500 kg (depends on block size and wood grade) |
| Thermal Conductivity | 0.12-0.15 W/m·K (natural thermal break) |
Product Range & Dimensions
Standard Sizes (DN 15 – DN 100)
| Code | Pipe Size | Pipe OD (mm) | Block Ø (mm) | Height H (mm) | U-Bolt Size | Length L (mm) |
| NAC-WPS15 | ½″ (DN15) | 21.3 | 22 | 50 | M10 | 122 |
| NAC-WPS20 | ¾″ (DN20) | 26.7 | 27 | 50 | M10 | 127 |
| NAC-WPS25 | 1″ (DN25) | 33.4 | 34 | 50 | M10 | 134 |
| NAC-WPS32 | 1¼″ (DN32) | 42.1 | 43 | 50 | M10 | 143 |
| NAC-WPS40 | 1½″ (DN40) | 48.2 | 49 | 50 | M10 | 149 |
| NAC-WPS50 | 2″ (DN50) | 60.3 | 61 | 50 | M10 | 161 |
| NAC-WPS65 | 2½″ (DN65) | 73.0 | 73 | 50 | M10 | 173 |
| NAC-WPS80 | 3″ (DN80) | 88.9 | 89 | 50 | M10 | 189 |
| NAC-WPS100 | 4″ (DN100) | 114.3 | 115 | 50 | M10 | 215 |
Large Sizes (DN 150 – DN 500)
| Code | Pipe Size | Pipe OD (mm) | Block Ø (mm) | Height H (mm) | U-Bolt Size | Length L (mm) |
| NAC-WPS150 | 6″ (DN150) | 168.3 | 169 | 50 | M14 | 269 |
| NAC-WPS200 | 8″ (DN200) | 219.1 | 220 | 50 | M14 | 320 |
| NAC-WPS250 | 10″ (DN250) | 273.0 | 273 | 50 | M14 | 373 |
| NAC-WPS300 | 12″ (DN300) | 323.8 | 324 | 75 | M14 | 424 |
| NAC-WPS350 | 14″ (DN350) | 355.5 | 356 | 75 | M14 | 456 |
| NAC-WPS400 | 16″ (DN400) | 406.4 | 407 | 75 | M18 | 507 |
| NAC-WPS500 | 20″ (DN500) | 509.0 | 510 | 75 | M18 | 610 |
Larger sizes up to DN 900 available on request. Full dimensional drawings available for submittals.
Why New Age Wooden Supports?
️ Insulation Protection
CNC-machined cradle maintains full insulation thickness at support points—prevents compression damage that causes condensation and efficiency loss.
Fire-Retardant Certified
ASTM E84 Class B treatment meets Egyptian fire code for mechanical shafts and plant rooms. Test certificates available for civil defense approval.
CNC Precision, Not Hand-Cut
±0.5mm tolerance on pipe radius ensures proper fit. Pre-drilled U-bolt holes eliminate field fabrication and rework.
️ Natural Thermal Break
Wood’s low conductivity (0.12-0.15 W/m·K) prevents condensation at cold pipe support points—eliminates thermal bridging from metal saddles.
⚡ Faster Installation
Pre-machined blocks with matched U-bolts reduce installation time by 40-60% vs. field-cut supports.
Applications by System Type
| System | Pipe Size Range | Recommended Treatment | Primary Benefit |
| HVAC Chilled Water | 2″ – 12″ | Fire-retardant | Prevents condensation at supports |
| HVAC Hot Water | 1″ – 8″ | Fire-retardant | Maintains insulation efficiency |
| Fire Protection Mains | 4″ – 8″ | Fire-retardant | Code-compliant shaft installation |
| District Cooling | 8″ – 24″ | Epoxy sealer | Heavy load capacity, outdoor use |
| Process/Industrial | Variable | Epoxy or custom | Chemical/moisture resistance |
Treatment Selection Guide
| Treatment | Best For | Key Benefit |
| Fire-Retardant | Mechanical shafts, plant rooms, high-rise | Egyptian fire code compliant (ASTM E84 Class B) |
| Epoxy Sealer | Outdoor racks, humid areas, tunnels | Moisture barrier + UV resistance |
| Wood Preservative | Indoor dry installations | Anti-fungal, basic protection |
Installation Guidelines
- Position block on structural support with U-bolt holes perpendicular to pipe axis
- Install insulation (if using vapor barrier systems, install before block placement)
- Place pipe in cradle ensuring centered contact—no tilt or offset
- Install U-bolt through pre-drilled holes and tighten evenly
- Final torque to snug fit—do not over-compress insulation jacket
Key Points:
- Support spacing per Egyptian Mechanical Code (typically 2.5-5m depending on size)
- Allow thermal movement—do not over-constrain pipe
- Verify insulation thickness clearance before installation
Standards & Compliance
- ASTM E84 — Fire-retardant surface burning characteristics
- Egyptian Mechanical Code — Pipe support spacing and load requirements
- Egyptian Fire Code — Combustible materials in mechanical spaces
- MSS SP-58 — Pipe hanger and support standards
- ISO 9001:2015 — New Age manufacturing certification
Test certificates and treatment reports available for consultant approval.
Technical Support & Engineering Services
Our team provides:
- Support spacing calculations per Egyptian Code
- Load verification for insulated pipe assemblies
- Fire-retardant certification for civil defense
- U-bolt and hardware sizing recommendations
- Dimensional drawings for submittal packages
Compatible New Age Products
U-Bolts with EPDM Lining — Pre-matched to block pipe diameter
Threaded Rods — Vertical suspension elements
Beam Clamps — No-weld structural attachment
Pipe Hangers — Complete suspension assemblies
