Technical Specifications
| Feature | Details |
| Material | Grade A36 Mild Steel (A572 Grade 50 available on request) |
| Construction | Two pre-formed steel bars with precision-drilled bolt holes |
| Maximum Temperature | Up to 343°C (650°F) continuous service |
| Load Capacity Range | 450 kg to 3200 kg (varies by pipe size) |
| Finish Options | Electro-Galvanized (12-25μm), Hot-Dip Galvanized (55μm), Plain |
| Bolt Specifications | Grade 8.8 hex bolts included (M10 or M12 depending on size) |
| Installation Method | Floor-mounted, direct load transfer to structural elements |
| Standards Compliance | Egyptian Mechanical Code, NFPA 13/14 compatible |
| Pipe Compatibility | Steel pipe Schedule 40/80, nominal sizes 1″ to 8″ |
Product Range & Load Capacities
| Product Code | Pipe Size | Pipe OD (mm) | Max Vertical Load (kg) | Bar Thickness (mm) | Bolt Size | Weight (kg) |
| NAC-RSC-25 | 1″ (DN25) | 33.4 | 450 | 6 | M10 | 1.2 |
| NAC-RSC-32 | 1¼” (DN32) | 42.1 | 580 | 6 | M10 | 1.4 |
| NAC-RSC-40 | 1½” (DN40) | 48.2 | 720 | 8 | M10 | 1.8 |
| NAC-RSC-50 | 2″ (DN50) | 60.3 | 900 | 8 | M10 | 2.1 |
| NAC-RSC-65 | 2½” (DN65) | 73.0 | 1200 | 10 | M12 | 2.8 |
| NAC-RSC-80 | 3″ (DN80) | 88.9 | 1450 | 10 | M12 | 3.2 |
| NAC-RSC-100 | 4″ (DN100) | 114.3 | 1850 | 12 | M12 | 4.1 |
| NAC-RSC-125 | 5″ (DN125) | 141.3 | 2400 | 12 | M12 | 4.8 |
| NAC-RSC-150 | 6″ (DN150) | 168.3 | 2850 | 15 | M12 | 6.2 |
| NAC-RSC-200 | 8″ (DN200) | 219.1 | 3200 | 15 | M12 | 7.5 |
*Load capacities include 2:1 safety factor. Custom sizes available for special applications.
Construction & Design Details

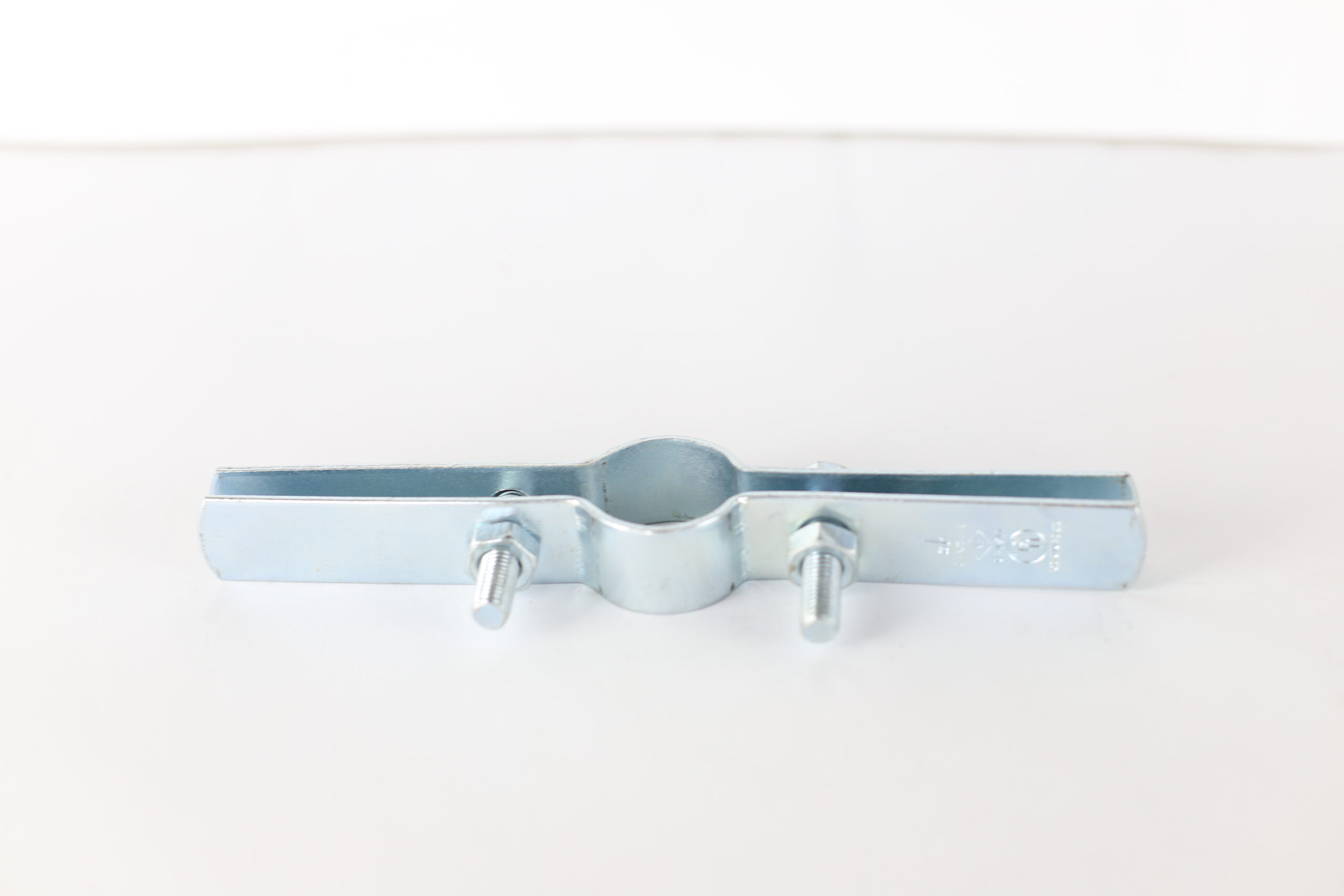

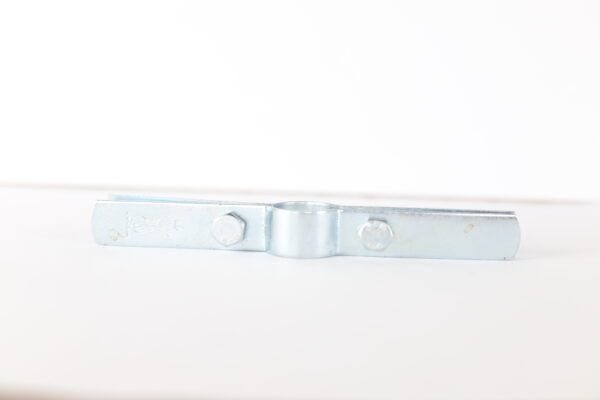

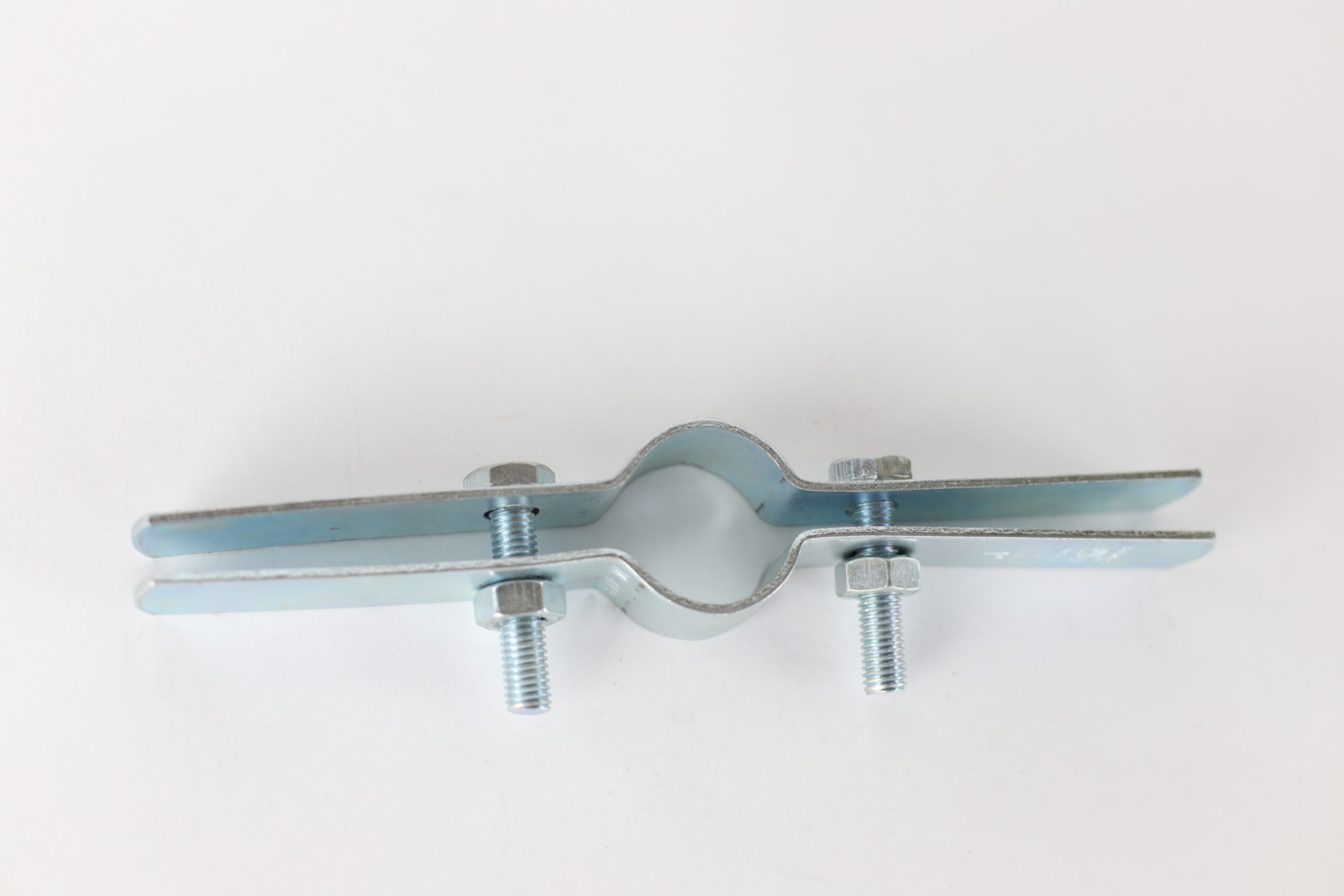

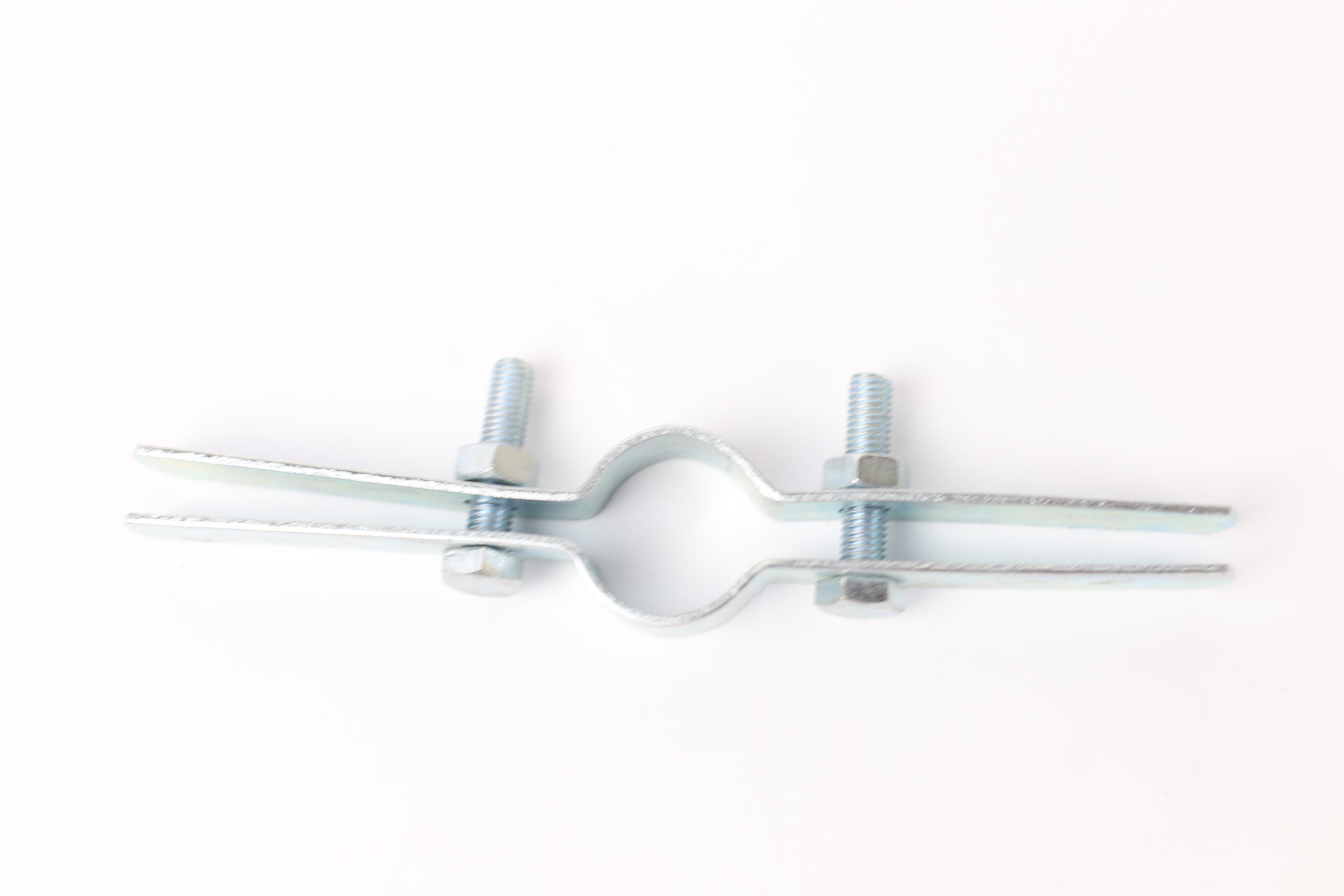

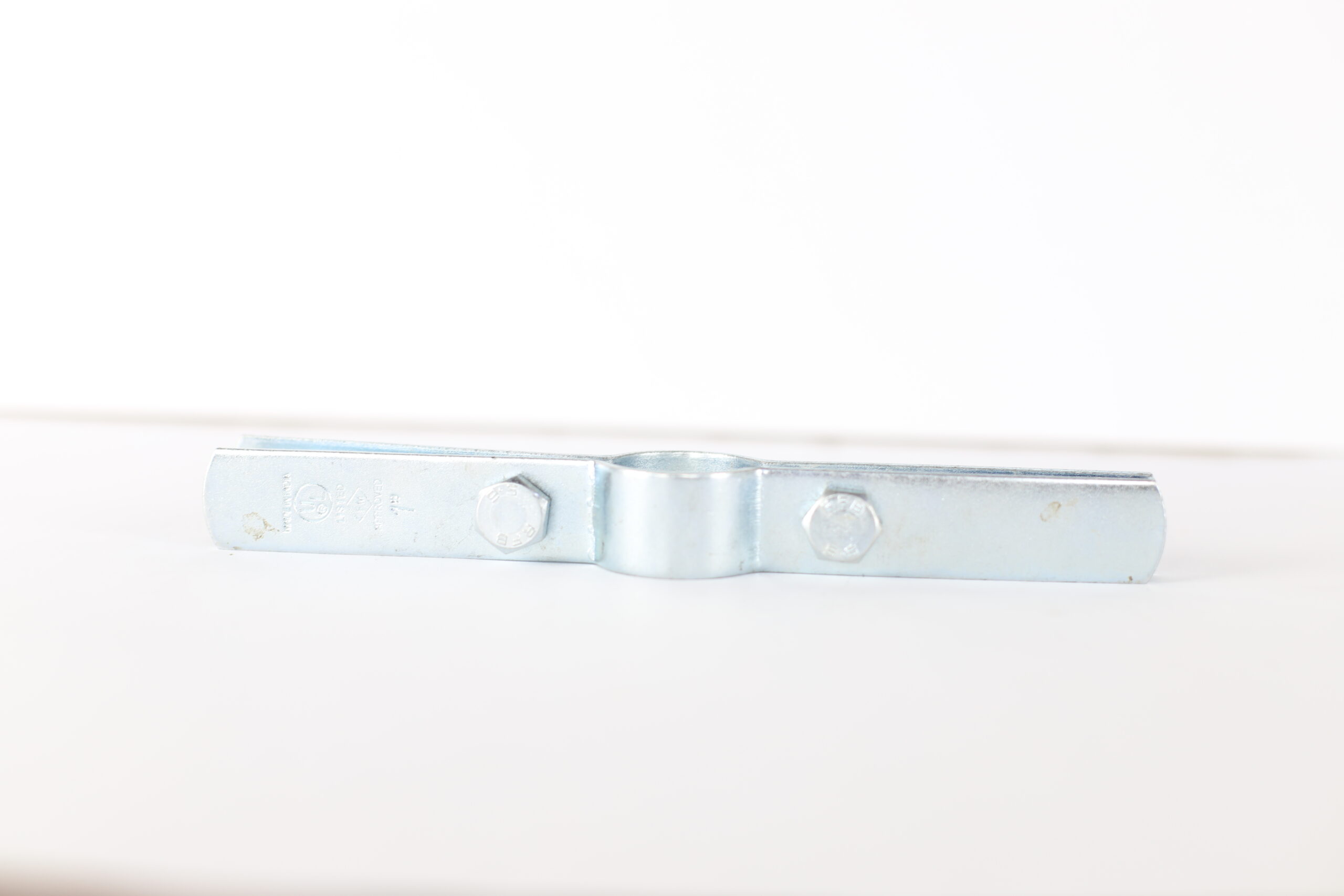

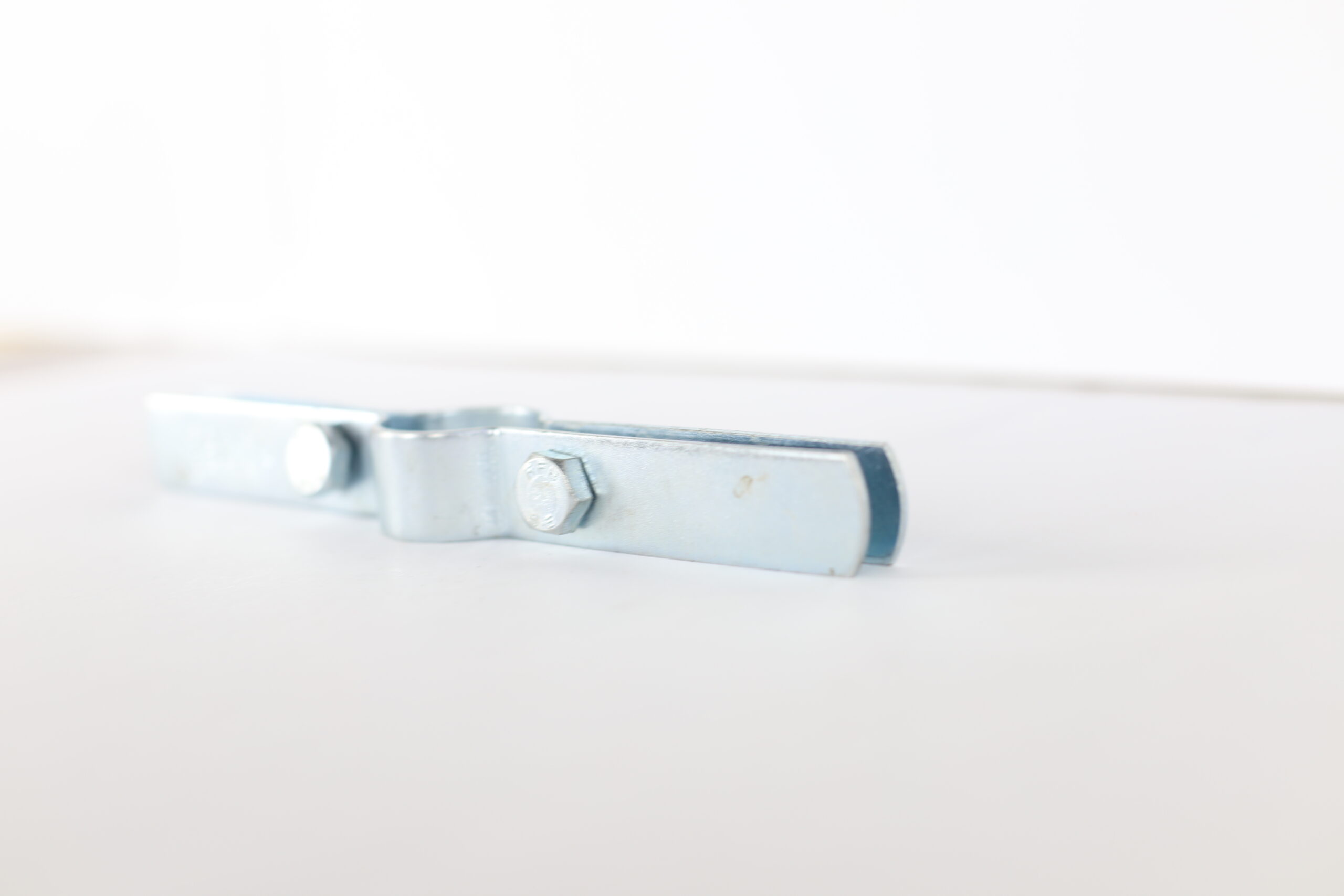

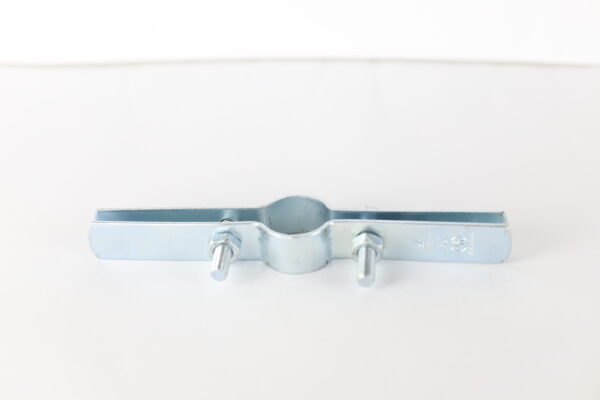

Clamp Assembly
- Bar Configuration: Two precision-formed steel bars creating pipe cradle
- Bar Dimensions: Width 50-80mm (varies by pipe size), length 150-250mm
- Bolt Pattern: Pre-drilled holes with ±0.5mm tolerance for perfect alignment
- Load Transfer: Direct bearing contact with structural floor or beam
Structural Requirements
- Minimum Floor Capacity: 150% of maximum pipe load (concentrated load)
- Bearing Area: Minimum 100 cm² contact with structural element
- Edge Distance: Minimum 75mm from slab edge or beam flange
- Access Clearance: 100mm minimum around clamp for installation/maintenance
Quality Features
- Precise Pipe Fit: Machined radius matches pipe OD with 1-2mm clearance
- Bolt Grade: High-tensile Grade 8.8 bolts included with each clamp
- Surface Preparation: Shot-blasted prior to galvanizing for superior adhesion
- Load Distribution: Designed bearing surface prevents stress concentration
Why New Age RISER CLAMP?
Floor-Mounted Stability System
Engineered to transfer vertical pipe loads directly to structural elements. No hanger rods, no ceiling attachments, no load path complications—just solid ground support.
Egyptian-Made Structural Precision
Manufactured at our Abu Rawash facility using precision forming and machining equipment. Every clamp maintains dimensional accuracy for consistent load transfer and installation.
Professional Load Transfer Design
Each size calculated for specific pipe weights plus contents, seismic loads, and thermal expansion forces. Engineers receive documented load paths for structural calculations.
Code-Compliant Installation
Meets Egyptian Mechanical Code requirements for vertical pipe support. Compatible with NFPA 13 and 14 sprinkler system installation standards.
Complete Installation Package
Includes Grade 8.8 bolts matched to clamp size and load requirements. Pre-drilled holes ensure proper bolt engagement and load distribution.
Contractor-Proven Reliability
Trusted in Egypt’s tallest buildings where vertical pipe support cannot fail. Used by top contractors in high-rise MEP installations.
Primary Applications
Fire Protection Riser Systems
Supporting vertical sprinkler risers, standpipes, and fire pump discharge lines between floor levels in high-rise buildings.
HVAC Vertical Distribution
Chilled water risers, heating hot water lines, and condenser water piping in commercial buildings and residential towers.
Plumbing Riser Support
Domestic water supply and waste lines in multi-story buildings, especially at floor penetrations and equipment levels.
Industrial Process Piping
Vertical runs in manufacturing facilities, power plants, and process industries where floor-mounted support is required.
Installation Requirements & Procedures
Structural Prerequisites
- Floor Loading: Verify structural capacity for concentrated pipe loads
- Bearing Surface: Ensure flat, level contact area minimum 100 cm²
- Access Requirements: Maintain 100mm clearance for bolt tightening
- Pipe Preparation: Install pipe guides or sleeves at floor penetrations
Professional Installation Steps
- Position Verification: Place clamp at design elevation on structural element
- Pipe Alignment: Ensure vertical pipe is plumb and properly positioned
- Clamp Assembly: Place clamp around pipe at support point (typically below flange or coupling)
- Bolt Installation: Insert Grade 8.8 bolts through precision-drilled holes
- Torque Application: Tighten bolts to specified torque (see table below)
- Load Verification: Confirm direct bearing contact with structural element
- Final Inspection: Check pipe restraint and load transfer path
Installation Torque Requirements
- M10 Bolts: 40-50 Nm
- M12 Bolts: 70-85 Nm
- Re-torque: Check bolts after initial loading period
Structural Integration Guidelines
Floor Slab Requirements
- Minimum Thickness: 150mm reinforced concrete slab
- Concentrated Load: Design for pipe weight plus 50% dynamic factor
- Reinforcement: Additional reinforcing may be required at support points
- Edge Distance: Maintain minimum 75mm from slab edges
Steel Beam Mounting
- Flange Bearing: Direct contact with top flange of structural steel
- Beam Capacity: Verify beam can support concentrated loads
- Connection Details: May require additional plates or stiffeners
- Lateral Restraint: Consider lateral pipe movement and thermal expansion
Load Path Verification
- Direct Transfer: Load path must be clear from pipe through clamp to structure
- No Suspended Loads: Clamp must not hang from overhead elements
- Structural Analysis: Include clamp loads in structural design calculations
- Seismic Considerations: Account for seismic forces in high-seismic zones
Standards & Code Compliance
Egyptian Standards
- Egyptian Mechanical Code: Pipe support spacing and load requirements
- Egyptian Building Code: Structural loading and safety factors
- Fire Safety Code: Requirements for fire protection system supports
International References
- NFPA 13: Sprinkler system installation standards
- NFPA 14: Standpipe system requirements
- ASME B31.1: Power piping support requirements
- MSS SP-58: Pipe hangers and supports selection guide
Quality Certifications
- Material Certificates: Mill test reports for steel grades
- Load Testing: Proof load verification for each size range
- Coating Standards: ASTM B633 (electro-galvanizing), ASTM A153 (hot-dip)
- Manufacturing Quality: ISO 9001:2015 certified production
What You Get
✓ One Riser Clamp Assembly (two pre-formed steel bars)
✓ Grade 8.8 Hex Bolts (size matched to clamp capacity)
✓ Precision-Drilled Holes for perfect bolt alignment
✓ Load Certification documenting maximum vertical capacity
✓ Installation Guide with structural requirements and torque specifications
✓ Technical Support for load calculations and structural integration
Application Examples & Case Studies
High-Rise Sprinkler Riser
- Building: 15-story residential tower
- Application: 6″ fire riser support at mechanical levels
- Product: NAC-RSC-150 with hot-dip galvanized finish
- Load: 2850 kg capacity supporting riser plus water content
Commercial HVAC System
- Building: Office complex with central chilled water
- Application: 4″ chilled water supply riser
- Product: NAC-RSC-100 with electro-galvanized finish
- Installation: Floor-mounted at each level with thermal expansion accommodation
Industrial Process Installation
- Facility: Manufacturing plant with process steam
- Application: 5″ steam supply vertical run
- Product: NAC-RSC-125 with plain finish (customer painting)
- Requirements: High-temperature service with insulation consideration
Major Project Installations
️ Egyptian Opera House – Fire protection riser supports in performance halls
️ New Capital Residential Towers – HVAC and plumbing riser systems
️ Military Complex High-Rise – Multi-story MEP vertical distribution
Upper Egypt Smart Cities – Commercial building mechanical systems
Healthcare Facilities – Medical gas and fire protection risers
Industrial Projects – Process piping vertical runs and equipment connections
Engineering Firm Testimonials
“Direct load transfer eliminates complex hanger rod calculations. Clean installation, reliable performance.” – Senior MEP Engineer, Leading Cairo Consultancy
Contractor Feedback
“Two-minute installation per clamp. No ceiling access required. Perfect for tight construction schedules.” – Project Manager, Major Egyptian Contractor
Technical Support & Engineering Services
Design Assistance
- Load Calculations: Pipe weight plus contents, thermal forces, seismic loads
- Structural Requirements: Floor loading analysis and bearing area calculations
- Installation Planning: Clamp spacing, support elevation, and clearance requirements
- Custom Solutions: Special sizes, materials, or configurations for unique applications
Project Support Services
- Site Surveys: Evaluation of existing structural conditions
- Installation Training: Proper procedures for field crews
- Quality Inspection: Verification of installation and load transfer
- Technical Documentation: As-built drawings and load verification reports
Engineering Resources
- Technical Data Sheets: Complete specifications and load tables
- CAD Library: 2D/3D models for design integration
- Calculation Templates: Structural analysis aids for engineers
- Installation Videos: Professional installation techniques and best practices
