Technical Specifications
| Feature | Details |
| Material | High-tensile steel with controlled expansion mechanism |
| Size Range | M6 to M20 thread compatibility |
| Finish Options | Electro-Galvanized, Plain (Hot-Dip Galvanized available) |
| Installation Method | Flush-mount with internal expansion setting |
| Concrete Requirements | Minimum C20/25 (25 N/mm²) compressive strength |
| Temperature Rating | -40°C to +80°C standard applications |
| Edge Distance | Minimum 3x anchor diameter from concrete edge |
| Anchor Spacing | Minimum 6x anchor diameter center-to-center |

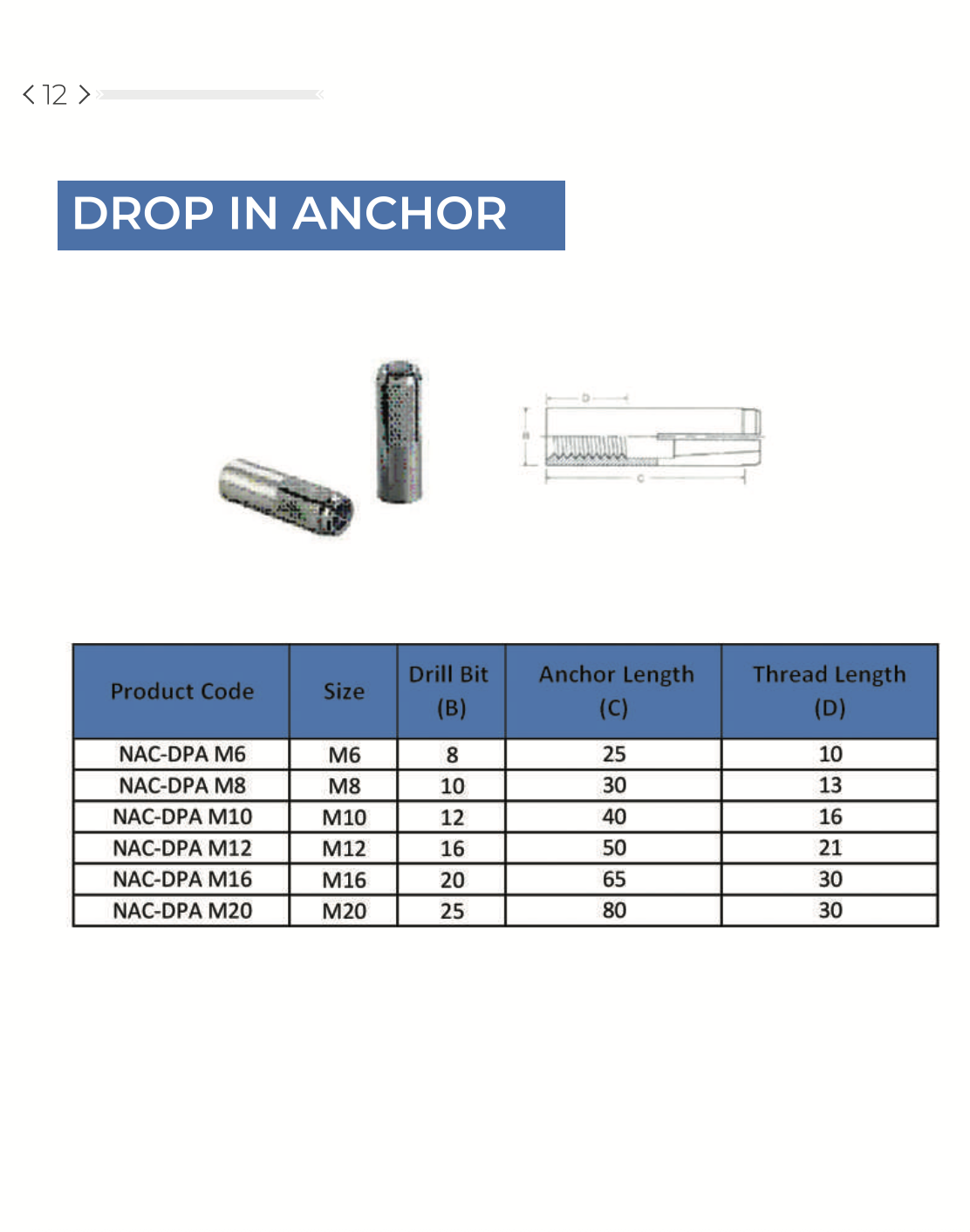

Product Range & Dimensions
| Product Code | Thread Size | Drill Bit (mm) | Anchor Length (mm) | Thread Depth (mm) | Embedment Depth* |
| NAC-DPA M6 | M6 | 8 | 25 | 10 | 30 mm |
| NAC-DPA M8 | M8 | 10 | 30 | 13 | 40 mm |
| NAC-DPA M10 | M10 | 12 | 40 | 16 | 50 mm |
| NAC-DPA M12 | M12 | 16 | 50 | 21 | 65 mm |
| NAC-DPA M16 | M16 | 20 | 65 | 30 | 80 mm |
| NAC-DPA M20 | M20 | 25 | 80 | 30 | 100 mm |
*Minimum concrete thickness required for proper installation
Load Capacities & Performance Data
Working Load Limits (with 4:1 safety factor)
- Tension Loads: 8.5 kN (M6) to 45.2 kN (M20)
- Shear Loads: 12.1 kN (M6) to 67.8 kN (M20)
- Combined Loading: Per ACI 318 interaction equations
Performance Characteristics
- Ultimate Pullout Strength: Up to 180 kN (M20 in 25 N/mm² concrete)
- Fatigue Resistance: 2 million cycles at 25% ultimate load
- Vibration Rating: Suitable for dynamic MEP applications
Complete load tables with concrete strength variations available in technical data sheet
Why New Age DROP-IN ANCHOR?
Flush-Mount Design Advantage
Zero protrusion above concrete surface. Ideal for ceiling installations where clearance is critical or fixtures require removal for maintenance access.
Egyptian-Made Structural Reliability
Manufactured at our Abu Rawash facility using precision forming equipment. Every anchor meets dimensional tolerances for consistent performance and code compliance.
Professional Installation System
Works with standard setting tools for reliable expansion. Internal mechanism ensures proper embedment without over-expansion risk.
Structural Engineering Certified
Load-tested per international standards. Provides engineers with documented capacity data for structural calculations and permit submissions.
Project-Proven Performance
Specified by Egypt’s leading consultancy firms and installed in high-profile developments where structural integrity cannot be compromised.
Quality-Controlled Manufacturing
In-house galvanizing process ensures consistent corrosion protection. Automated production minimizes dimensional variation between batches.
Primary Applications
Fire Protection Systems
Securing threaded rod hangers for sprinkler systems, standpipe supports, and fire pump room equipment in concrete structures.
HVAC Mechanical Systems
Anchoring duct supports, equipment pads, chilled water line hangers, and air handling unit mounting points.
Electrical Infrastructure
Cable tray supports, conduit hangers, transformer mounting, and electrical panel anchorage in commercial buildings.
MEP Retrofit Projects
Flush design allows anchor removal without concrete surface damage—essential for tenant improvement and equipment changeouts.
Installation Requirements
Concrete Specifications
- Minimum Strength: 25 N/mm² (C20/25) at 28 days
- Maximum Aggregate Size: 20mm
- Curing Time: Minimum 7 days before anchor installation
- Temperature Range: 5°C to 35°C during installation
Critical Installation Steps
- Drill Preparation: Use carbide-tipped masonry bit at specified diameter
- Hole Cleaning: Remove all concrete dust and debris (compressed air recommended)
- Depth Verification: Ensure hole depth matches embedment requirements
- Anchor Setting: Use approved setting tool with controlled expansion force
- Load Testing: Verify installation with proof load test when required
Standards & Certifications
Compliance References
- International: ASTM E488 (Anchor Bolt Strength Testing)
- Regional: Egyptian Code for concrete anchors
- Design Standards: ACI 318 Appendix D compatibility
- Quality Control: ISO 9001:2015 manufacturing processes
Available Documentation
- Structural Load Tables: Complete capacity data for various concrete strengths
- Installation Specifications: Detailed procedures with torque requirements
- Material Certificates: Steel grade and galvanization specifications
- Test Reports: Third-party verification of pullout and shear capacities
What You Get
✓ Drop-In Anchor unit (specify product code and finish)
✓ Internal expansion mechanism with controlled setting
✓ Compatible with standard M6-M20 threaded rods and bolts
✓ Installation guide with concrete requirements
✓ Load capacity documentation for engineering calculations
✓ Technical support throughout project implementation
Professional Installation Guide
Pre-Installation Checklist
- Verify concrete strength and curing time
- Confirm anchor size matches design loads
- Check edge distance and spacing requirements
- Ensure proper drill bit diameter and condition
Installation Sequence
- Mark Location: Use chalk line for accurate positioning
- Drill Hole: Maintain perpendicular angle, avoid rebar contact
- Clean Thoroughly: Remove all debris and concrete dust
- Insert Anchor: Ensure flush positioning with concrete surface
- Set Expansion: Use setting tool with manufacturer-specified strikes
- Verify Installation: Check for proper engagement before loading
Major Project Applications
️ Egyptian Opera House – Fire suppression system anchoring
️ New Capital Infrastructure – MEP system supports across multiple phases
️ Military Complex Facilities – High-security structural requirements
Upper Egypt Smart Cities – Commercial and residential MEP installations
Healthcare Facilities – Critical system anchoring with code compliance
Retail & Commercial – HVAC and electrical system supports
Engineering Firm Approvals
Specified and approved by Egypt’s top consulting engineers for structural and MEP applications.
Technical Support & Documentation
Available Resources
- Complete Technical Data Sheet: Load tables, installation procedures, material specifications
- CAD Drawings: 2D/3D models for design integration
- Structural Calculations: Sample calculations for common applications
- Installation Videos: Step-by-step professional installation guide
- Compliance Certificates: Material and performance test documentation
Engineering Support
- Load Calculation Assistance: Help with anchor selection and spacing
- Installation Training: On-site support for large projects
- Quality Assurance: Installation inspection and verification services
