Technical Specifications
| Feature | Details |
| Material | Mild Steel (custom materials available upon request) |
| Load Capacity Range | 350 kg to 2100 kg (varies by size – see load table below) |
| Temperature Rating | Up to 343°C (650°F) |
| Finish Options | Electro-Galvanized, Hot-Dip Galvanized, Plain |

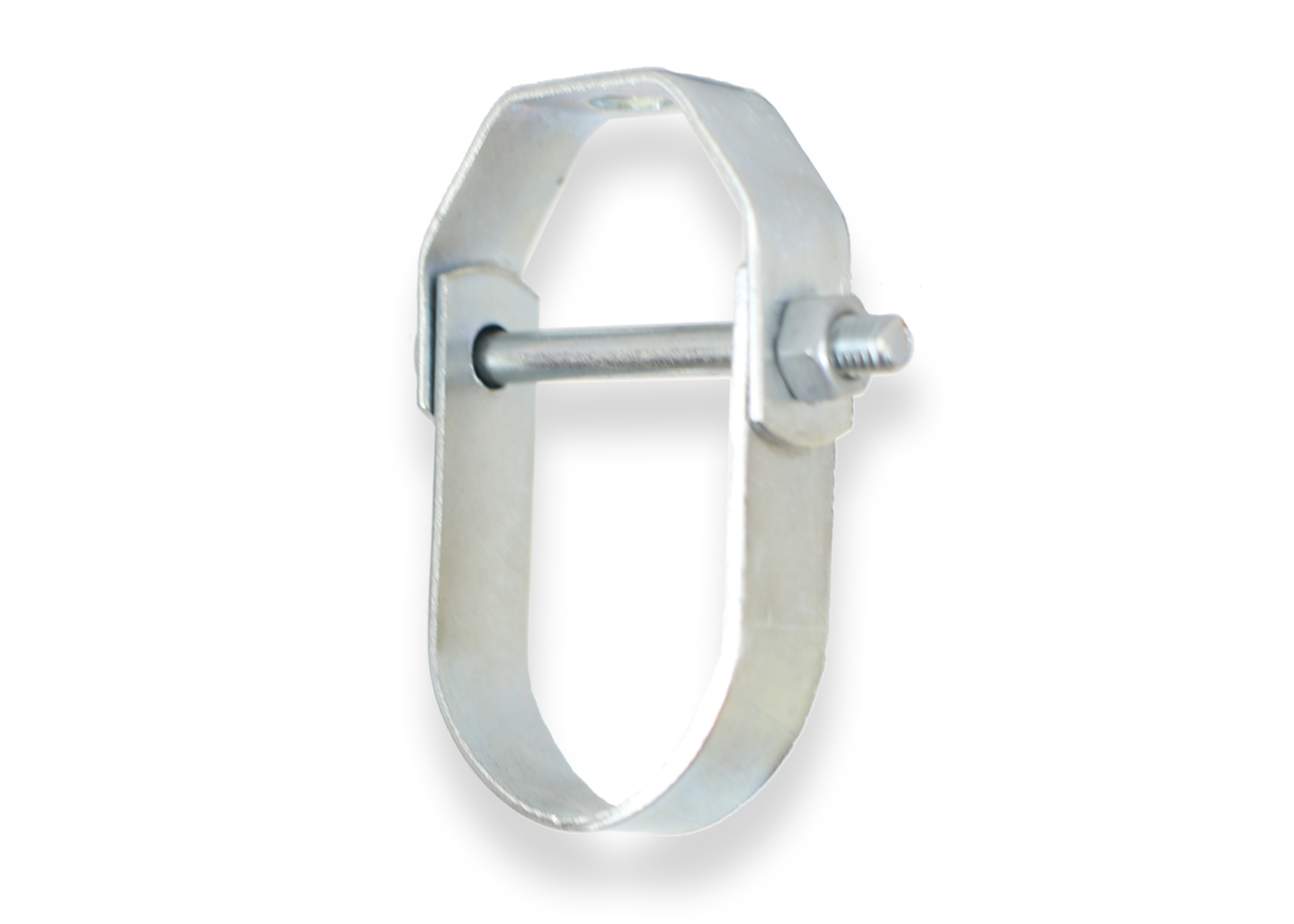

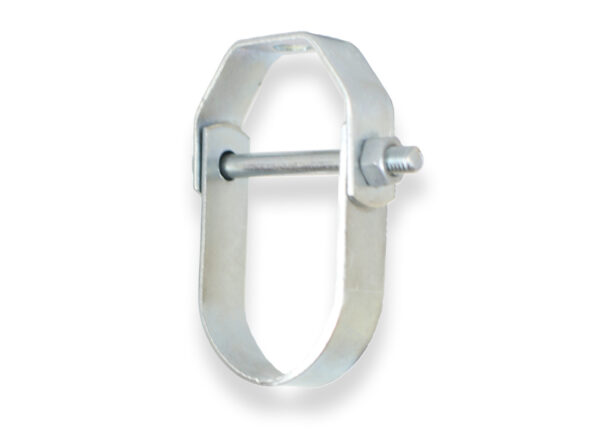

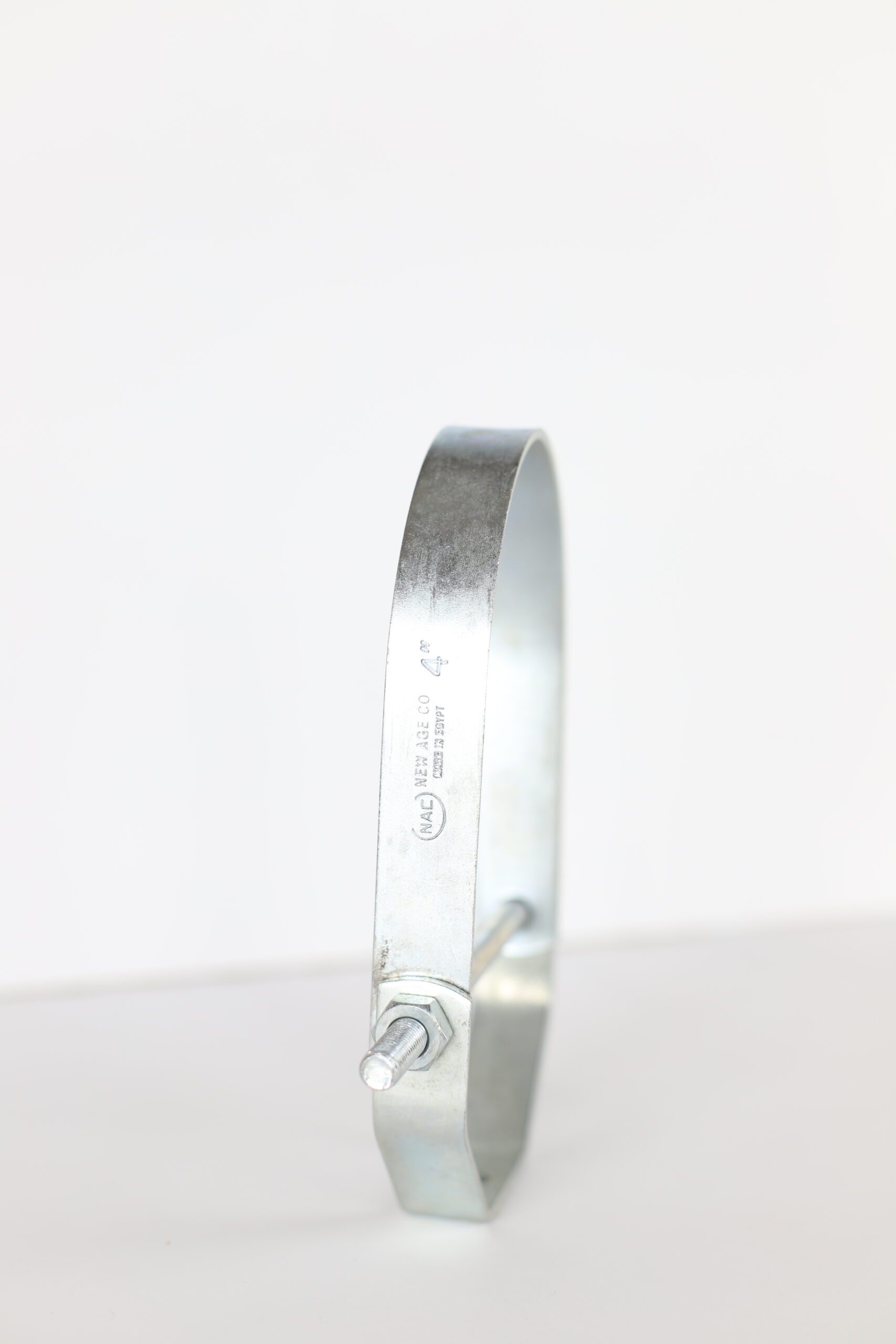

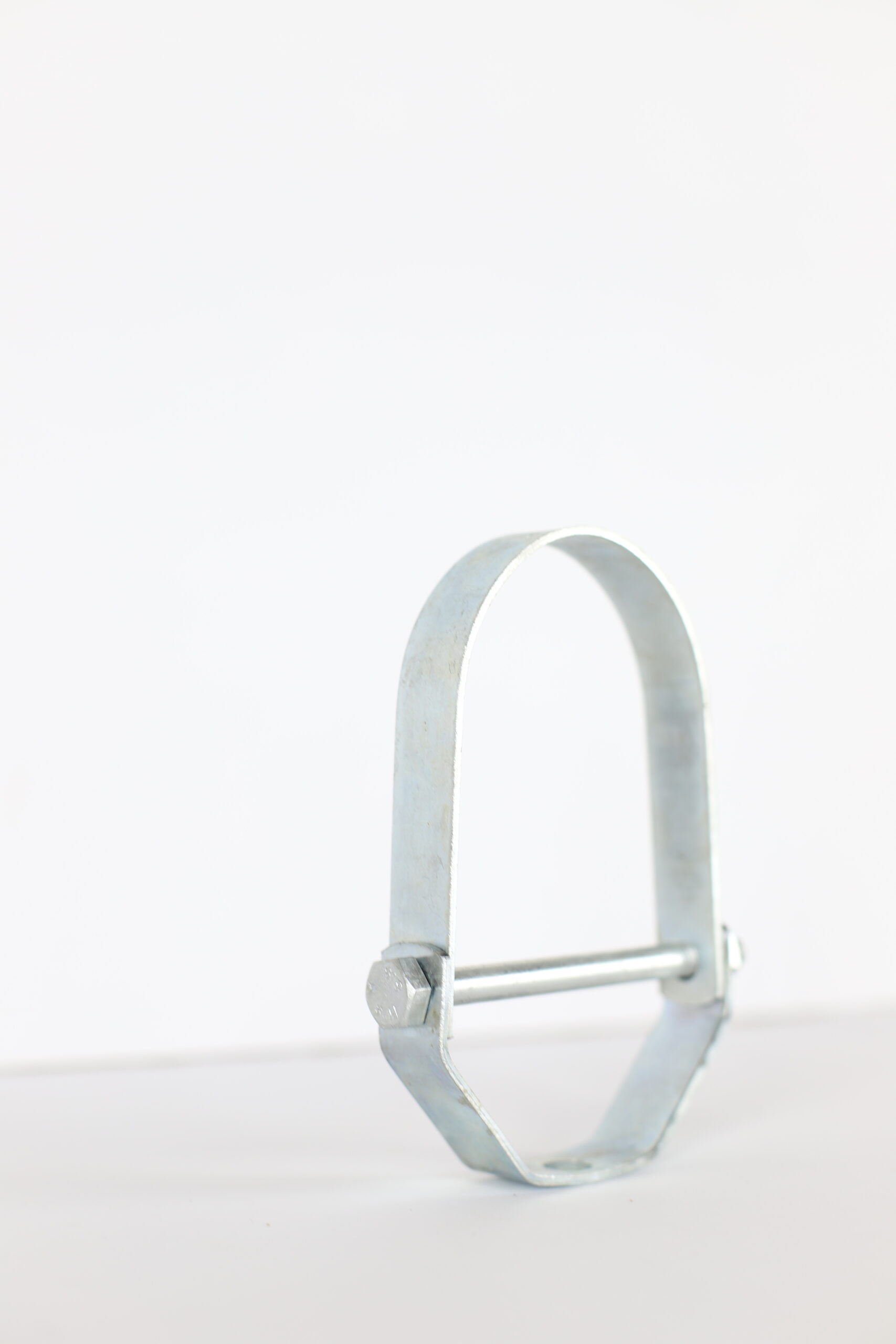

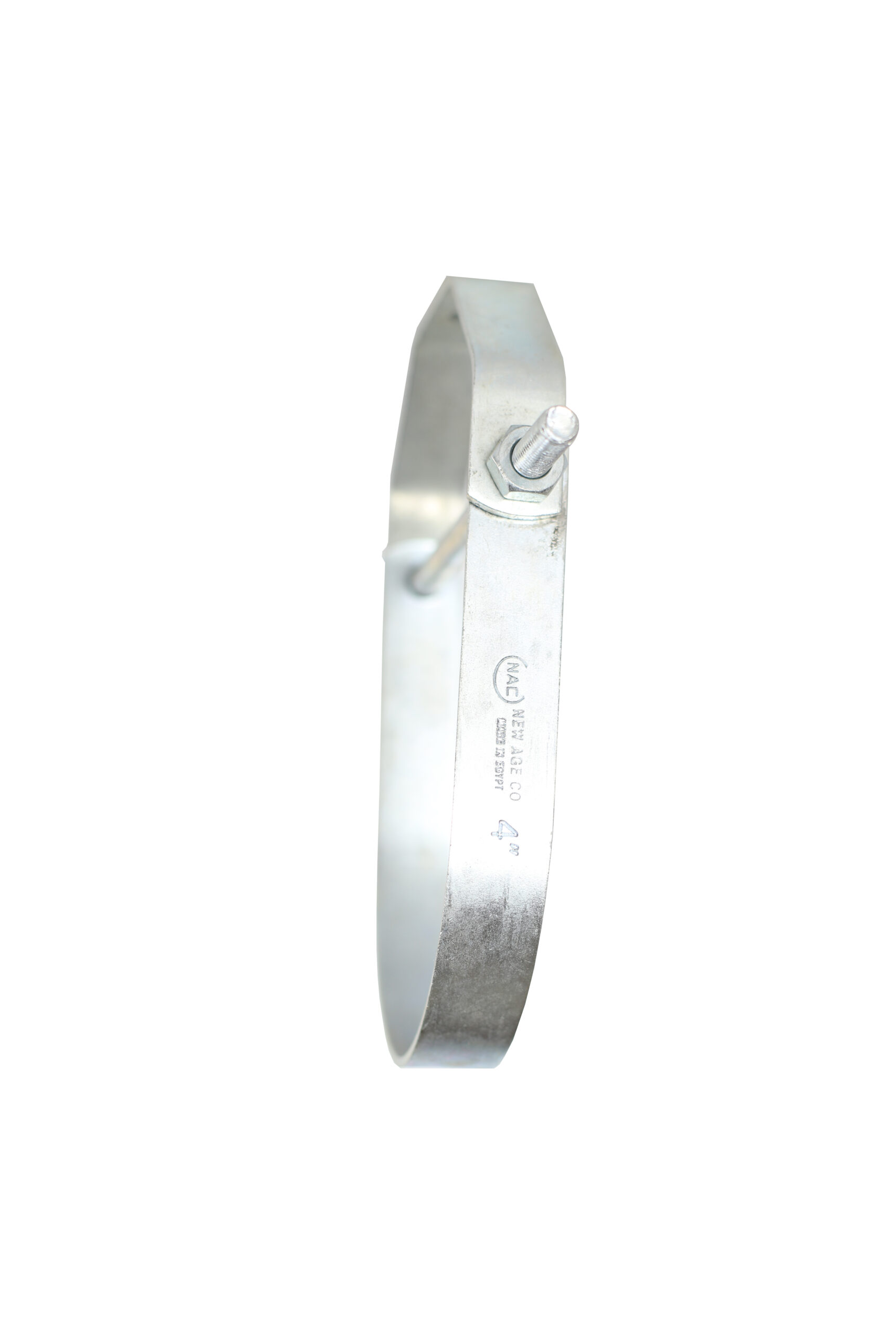

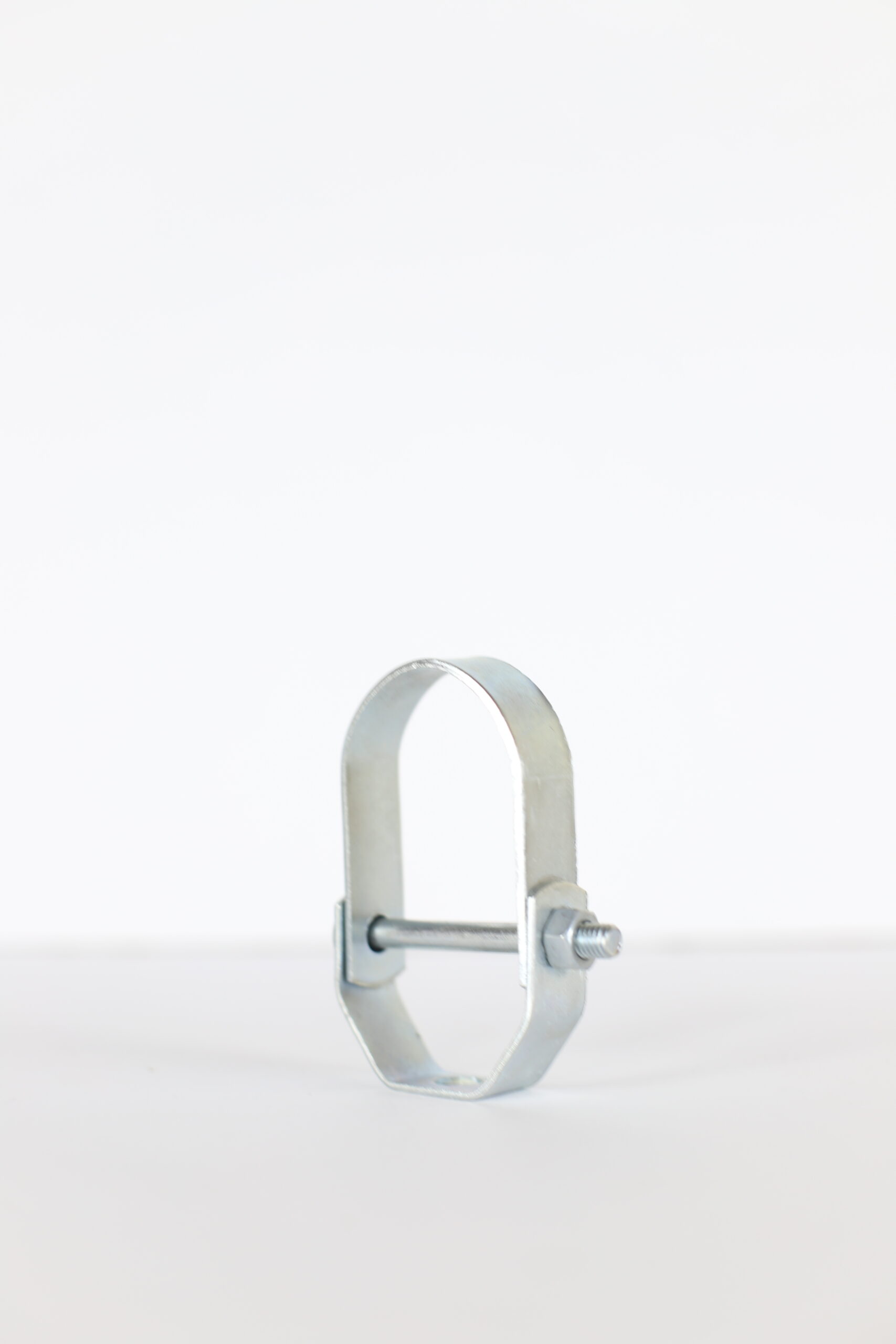

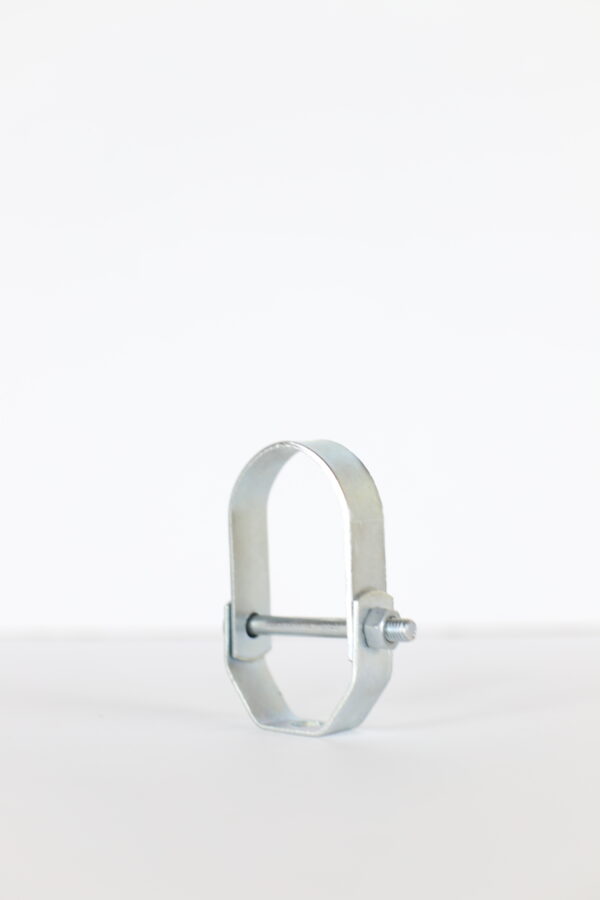

| Construction | Yoke + Support Strap with Joining Bolt |
| Swing Range | 15° in either direction for alignment flexibility |
| Thread Compatibility | M8 to M16 hanger rod sizes |
| Pipe Size Range | ½” to 10″ (DN15 to DN250) |
| Installation | Lower nut for elevation adjustment, upper nut prevents vibration loosening |
Load Capacity & Sizing Chart
| Product Code | Pipe Size | Pipe OD (mm) | Max Load (KG) | Hanger Rod | Cross Bolt |
| SE-CH 22 | ½” (DN15) | 21.3 | 350 | M10 | M8 |
| SE-CH 27 | ¾” (DN20) | 26.7 | 350 | M10 | M8 |
| SE-CH 34 | 1″ (DN25) | 33.4 | 350 | M10 | M8 |
| SE-CH 42 | 1¼” (DN32) | 42.1 | 350 | M10 | M8 |
| SE-CH 48 | 1½” (DN40) | 48.2 | 350 | M10 | M8 |
| SE-CH 60 | 2″ (DN50) | 60.3 | 350 | M10 | M8 |
| SE-CH 73 | 2½” (DN65) | 73.0 | 780 | M12 | M10 |
| SE-CH 89 | 3″ (DN80) | 88.9 | 780 | M12 | M10 |
| SE-CH 114 | 4″ (DN100) | 114.3 | 780 | M12 | M10 |
| SE-CH 141 | 5″ (DN125) | 141.3 | 1250 | M12 | M12 |
| SE-CH 168 | 6″ (DN150) | 168.3 | 1250 | M12 | M12 |
| SE-CH 219 | 8″ (DN200) | 219.1 | 2100 | M12 | M12 |
| SE-CH 273 | 10″ (DN250) | 273.1 | 2100 | M16 | M16 |
Why New Age CLEVIS HANGER?
Egyptian-Made, Internationally Certified
Manufactured in our Abu Rawash facility using automated machinery. Every unit meets Egyptian Code requirements and international MEP standards for firefighting applications.
Proven Load Performance
Load-tested to carry up to 2100 kg vertical loads without deformation. Certified for use in high-rise firefighting systems and HVAC installations.
Installation Efficiency
15° swing in either direction speeds up pipe alignment during overhead installation. No more wrestling with misaligned bolt holes on critical path activities.
Zero Vibration Loosening
Upper nut locks into position, preventing vibration-induced slippage. Lower nut provides precise elevation adjustment. Your pipes stay exactly where you put them.
In-House Galvanization Process
Corrosion-resistant finish applied using our automated galvanizing line. Consistent coating thickness extends service life in humid conditions.
Contractor-Proven Reliability
Specified by top consultancy firms and installed in Egypt’s landmark projects: Opera House, Military Complex facilities, and New Giza developments.
Applications
Fire Fighting Systems
Primary choice for supporting sprinkler pipes, risers, and main firefighting lines where elevation control and load capacity are critical.
HVAC Mechanical Systems
Used extensively in chilled water lines and vertical pipe runs across commercial and residential developments.
Retrofit & Maintenance Projects
Ideal solution for existing structures—adjustable design eliminates welding and reduces installation time.
Standards & Certifications
- Egyptian Code Compliant: Meets local firefighting system requirements
- Material Certification: Mill test certificates available for all steel grades
- Load Testing: Certified to carry specified loads with 2:1 safety factor
- Quality Control: 100% dimensional inspection before shipping
What You Get
✓ One Clevis Hanger unit (specify product code)
✓ Support strap with pre-installed joining bolt
✓ Installation guide with torque specifications
✓ Material certification and load test reports
✓ Technical support throughout project lifecycle
Installation Process
- Insert threaded rod through yoke hole
- Position pipe in support strap
- Use lower nut to adjust pipe to specified elevation
- Secure upper nut to lock against vibration (torque per specifications)
- Verify alignment using 15° swing flexibility
- Sign off on another successful installation
Technical Documentation Available
- CAD Files: 2D/3D drawings for all product codes
- Load Tables: Detailed working load limits and safety factors
- Installation Manual: Step-by-step procedures with torque values
- Material Certificates: Mill test reports for steel composition
- Compliance Reports: Egyptian Code and international standard confirmations
Trusted by Major Projects
️ Egyptian Opera House – Complete firefighting system support
️ New Giza Developments – HVAC and fire protection systems
️ Military Complex Facilities – High-security installation requirements
Upper Egypt Infrastructure – Multiple commercial and residential projects
Consultant Approved – Specified by Egypt’s leading engineering firms
